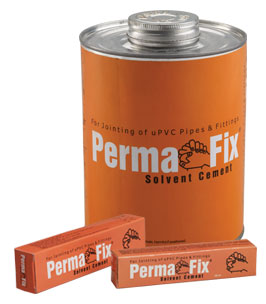

| Perma Fix™ Solvent Cement |
 |
Features and Specifications
- Formulated using suspension grade virgin PVC resin.
- Free flowing clear liquid.
- Fully homogenised, free from lumps and undissolved particles.
- Minimum viscosity 90 mPa.s/m² for regular bodied type, 500 mPa.s/m² for medium bodied type and 1600 mPa.s/m² for heavy bodied type.
- Lap joint shear strength 30 - 35 kg/cm² (430 - 500 psi) after 10 hours curing time under laboratory conditions.
- Hydrostatic burst strength 25-28 kg/cm² (355 - 400 psi) after 2 hours curing time.
- Available in 10, 25, 50 & 100 ml tube packing, 0.25, 0.5, 1.0, litres in tin packing & 5 litres can.
Applications
- Used for joining uPVC pressure or non pressure pipes.
Ordering Specifications
Example: DPF50 - This code represents Perma Fix® Solvent Cement of 0.5 litre pack.
Note: Perma Fix® can be supplied in special grade, please write the code as DPF5SP while ordering.
Technical Specifications
Guide for selection of solvent cement for various pipe sizes: (IS:14182)
| Pipe Size Range (mm) |
Cement Type |
Minimum Viscosity mPa.s/m² |
Min. Wet Film Thickness mm |
| 16 to 50 |
regular bodied |
90 |
0.15 |
| 51 to 200 |
medium bodied |
500 |
0.30 |
| > 200 |
heavy bodied |
1600 |
0.60 |
Solvent Cement Requirement for uPVC Pipes
Pipe Size,
mm |
No. of Joints*
per Litre |
|
Pipe Size,
mm |
No. of Joints*
per Liter |
| 20 |
330 |
125 |
45 |
| 25 |
270 |
140 |
36 |
| 32 |
225 |
160 |
27 |
| 40 |
180 |
180 |
20 |
| 50 |
135 |
200 |
15 |
| 63 |
125 |
225 |
12 |
| 75 |
103 |
250 |
9 |
| 90 |
79 |
280 |
6 |
| 110 |
54 |
315 |
5 |
* Each joint represents one socket in a Fitting. |
|
|
|
