| Rainport Assembilies™ |
 |
Rainport is an ultimate sprinkler irrigation system which overcomes all the limitations of conventional sprinkler irrigation system and yet meets the high standards of effective irrigation principles such as,
- High distribution uniformity.
- Controlled application rate.
- Gentle precipitation, low droplet impact on soil structure and no foliage damage.
- Short irrigation cycles to provide optimal growing conditions with highly accessible water and nutrient in controlled wetted and aerated soil profile.
Features and Specifications
- Portable, can be quickly shifted from one place to other.
- Easy to roll back and relay.
- Energy efficient.
- Labour saving.
- Economical, low initial and operational costs.
- Savings in water and fertilizers.
- Helps to increase effective area under irrigation.
- Improves crop quality and gross yield.
- Flexibility in selection of sprinkler/mini sprinkler nozzles on the basis of required discharge, radius or precipitation rate.
- Available in two types,
- Rainport™ MS - to be used with low/medium discharge (up to 200 lph) sprinkler/mini sprinkler.
- Rainport™ PS - to be used with high discharge (more than 200 lph) plastic sprinklers.
- Supplied as an assembly including PE/Vinyl tubing, connector set, M.S. rod of required length.
Applications
- Recommended for the irrigation of open field crops like potato, leafy vegetables, cotton, oil seeds, pulses, cereals, etc.
- Specially suitable for light & sandy soil.
Selecttion Chart

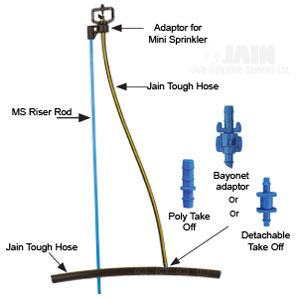

Selecttion Chart for Rainport™ MS Assemblies
| Tubing |
Rod Diameter,
mm |
Recommended
sprinkler/mini sprinkler |
Connector Set |
8 mm OD
Jain Tough Hose |
6 |
J-Mini Sprinkler, Acu-Spinner, 2002 AquaSmart, 2005 AquaMaster |
DAMSM8 - Adaptor for mini sprinkler 8 mm OD
DBTO0804 - Take off for 8 mm OD PE tube |

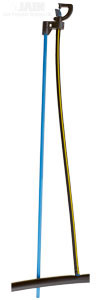

| Modular group (without static and inverted swivel), 2002AquaSmart, 2005 AquaMaster |
DAMSM8PF - Push fit adaptor for modular sprinkler
DBTO0804 - Take off for 8 mm OD PE tube |
8 mm OD
Jain Tough Hose |
6 |
Modular group (without static and inverted swivel), 2002AquaSmart, 2005 AquaMaster |
DBB8P - Butterfly adaptor for modular sprinkler
DBTO0804 - Take off for 8 mm OD PE tube or
DBFT - Bayonet Female Take off &
BMTA8 - Bayonet Male Take off Adaptor 8 mm or
DTGAD - Detachable Take off assembly |
8 mm OD
Jain Tough Hose |
8 |
501U |
DHTA12P8 - Adaptor for 501U
DBTO0804 - Take off for 8 mm OD PE tube |
| 12mm OD Jain Tough Hose |
6 |
J-Mini Sprinkler, Acu-Spinner,
501U (male threaded), 2005 Aquamaster |
DAMSM12 - Adaptor for mini sprinkler 12 mm OD
DBTO1204 - Take off for 12 mm OD PE tube |

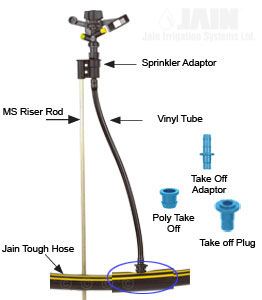

Selection Chart for Rainport™ PS Assemblies
| Tubing |
Rod Diameter,
mm |
Recommended
sprinkler/mini sprinkler |
Connector Set |
| 12/8 mm Vinyl Tube |
8 |

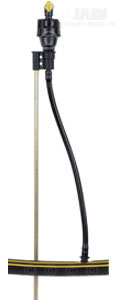

5022U, 5022, 502H, 427B AG, Super 10, 5024, Mastero, Mamkad 16 |
DDHTA1208V - Sprinkler adaptor for 12/8 mm Vinyl tube
DHTO12V - Take off
DHTOA1208V - Take off adaptor for 12/8 mm Vinyl tube |
|
|
|
