Unique Swivel Design Unique water swivel for optimum distribution, maximum range and fine droplets
Easy to Dismantle and Assemble Offers ease in maintenance & inspection
No Need of Adaptor Sprinkler has inbult sprinkler adaptor for 6mm riser rod support facility
Insect Proof Popup Swivel Innovative structure for improved durability, performance and Popup action for insect protection
Specially Designed Side Ribs Smooth streamlined side ribs to secure the spinner and give minimum obstruction to water jet
Tapered Inlet Connection Available in push-fit / tapered inlet connection for ease connectivity with assembly. Can also be supplied with 3/8" thread and 1/2" thread connection.
Flow Rates: 30 to 365 lph
Inlet Connection: Push-Fit Connection
Recommended Spacing´s: 4m to 7m
Recommended Pressure: 1.5 kg/cm² to 3 kg/cm²

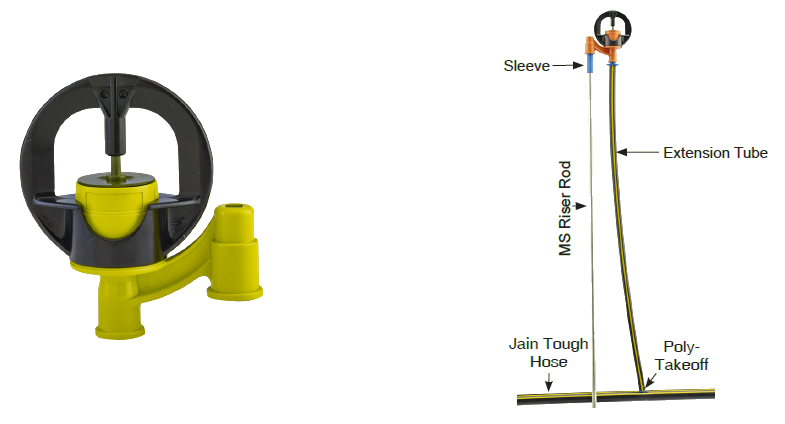

Easy to install with different mounting options, for details please refer to “Polyfittings & Accessories” section
Filtration requirement: - 130 micron for purple and brown nozzles - 200 micron for other nozzles.
Applications
The most economical solution for under tree and overhead irrigation
Particularly suitable for widely-spaced plantations, (such as walnut, almond, avocado and mango)

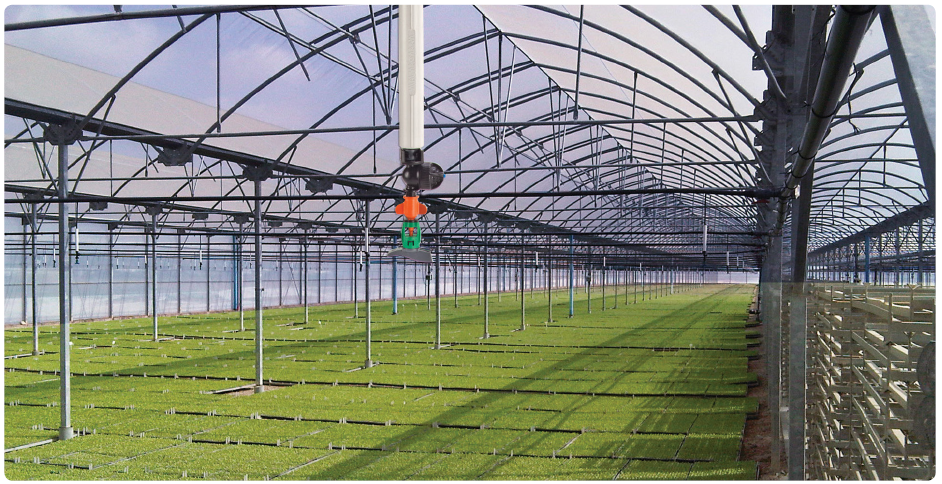

Suitable also for overhead irrigation on Rainport system for vegetables and nurseries (up to 6 x 6 m spacing)
