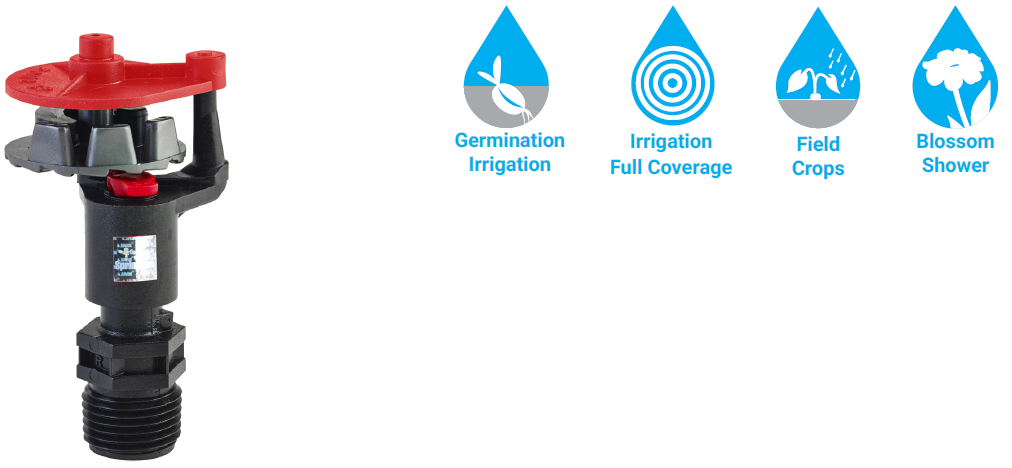

Corrugated Jet Spreader Corrugated jet spreader for uniform distribution and fine water droplets for delicate irrigation of all crops
Specially Designed Nozzle Unique design of nozzle ensures longer throw
Neck Spring Protection Cover Additional cover provided for neck spring protection
Unique Turbo Hammer Unique turbo hammer for uniform rotation.
Threaded Inlet Connection Available in ½” male threaded connections
Easy to Assemble & Dismantle For easy maintenance & inspection
Flow Rate : 226 to 345 lph
Inlet Connection : ½” male threaded
Wetted diameter : 13 m to 17 m
Recommended Pressure: 1.5 kg/cm² to 3.5 kg/cm²
Nominal operating pressure is 1.5 kg/cm². Can be used for other pressure ratings (lower / higher) after consulting company representative and due care for spacing and application rate.
Easy to install with different mounting options, for details
please refer to “Polyfittings & Accessories” section.
Applications

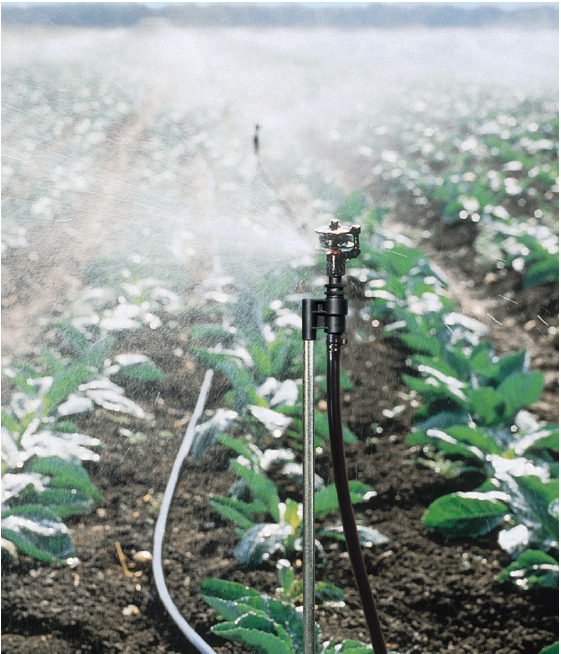

Overhead irrigation for extra-range spacings upto 10x10 m
