Detachable nozzle and spinner. Offers ease in maintenance and inspection.
Unique Spinner Design Specially designed spinner for uniform water distribution
3/8” BSP male threaded inlet. For ease in connectivity with assembly, 3/8" male BSP connection available.
Specially designed Ribs Smooth streamlined side ribs to secure the spinner and give minimum obstruction to water jet.
Colour codes for identification Color coded nozzle are available for different flow rates.
Precision molded sprinkler for assured quality Confirming to Indian standard IS14605 and International Standard ISO 8026
Flow Rates: 16-180 lph (4.2 - 47.6 gph) at an operating pressure of 1kg/cm² (14.22 psi)
Inlet Connection: 3/8” BSP male threaded
Recommended Spacing´s: 1.2 m to 4.4 m
Recommended Pressure : 1 kg/cm² to 3 kg/cm²
Nominal operating pressure is 1 kg/cm². Can be used for other pressure ratings (lower / higher) after consulting company representative and due care for spacing and application rate

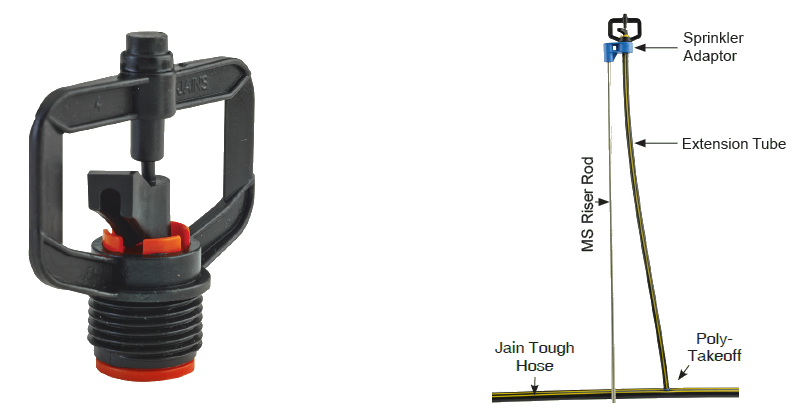

Easy to install with different mounting options. For details please refer to “Polyfittings & Accessories” section.
Minimum filtration requirement - 100 micron
Applications
Under-foliage irrigation.
Suitable for soils where adequate wetting is difficult to achieve and where water is available only for short periods.
Useful in landscape, flower beds, shrubs and nurseries.
Recommended for irrigation of vegetables, nurseries etc. with ’Rainport™’ system.
