Features and Specifications
- Innovative Sprinkler Design Compact, sturdy, closed and protected ball engine
- Flow Regulation Option Available with flow regulated option with silver colored base
- Cyclonic Plate for Rotation Equipped with cyclonic plate in sprinkler body to guide water & ball for nozzle rotation.
- Bayonet Nozzle Bayonet color coded nozzle for easy service
- Road Protector Option Specially designed road protector for part circle sprinkler
- Threaded Inlet Connection Available in 1/2" male BSP threaded connection for assembling with system.
- Discharges : 360-850 lph
- Diameter : 16 m to 20.5 m
- Recommended Pressure : 2.5 kg/cm² to 4 kg/cm²
- Inlet Connection : 1/2” BSP male threaded
- Operating pressure : 3 to 5 kg/cm² (For Flow regulated option)

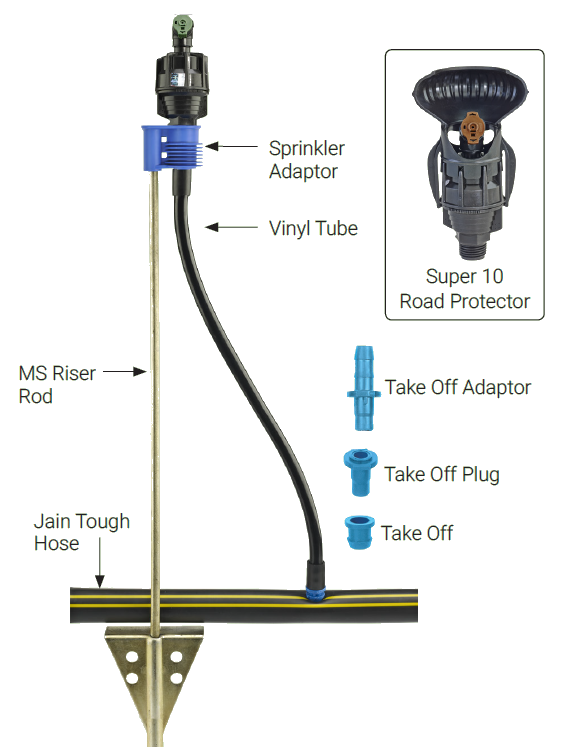

- Easy to install with different mounting options, for details please refer to “Polyfittings & Accessories” section.
- Suitable to use with Jain Rainport Systems.

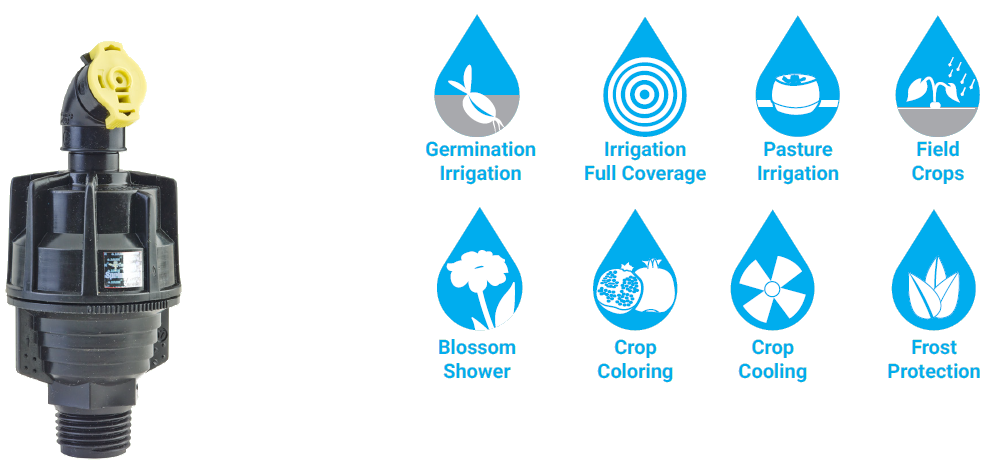

Applications
- Overhead irrigation for extra-range spacing’s up to 12 m.
- Recommended for closely spaced field crops, such as potato, leafy vegetables, cotton, oil seeds, pulses, cereals and fodder crops.
|
