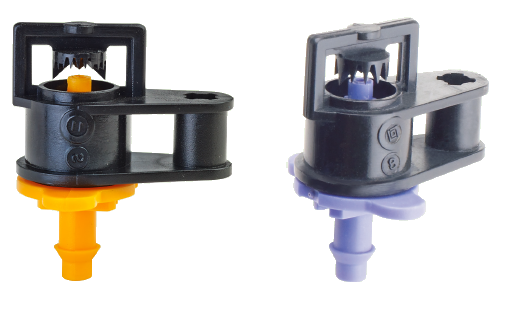

Unique Nozzle and Spreader Design Unique nozzle structure forms turbulent flow and wide water pathways even at low flow rates, for high clogging resistance.
Color Coded Nozzle Size color coded nozzles for easy identification of flow rates
Specially Designed Side Ribs Smooth streamlined side ribs to give minimum obstruction to water jet
Multiple Attachment Options Multiple attachment options like quick thread & barbed for connection
Flow rates: 16 - 111 lph.
Operating pressures: 1.0 - 3.5 kg/cm²
Wetted Diameter: 2.7 to 7.6 m
Filtration requirements,
– Black, Orange and Blue nozzles: 130 microns (120 mesh)
– Violet, Green and Red nozzles: 200 microns. (80 mesh)
Applications
Recommended for irrigation of wide spread root zone crops.
