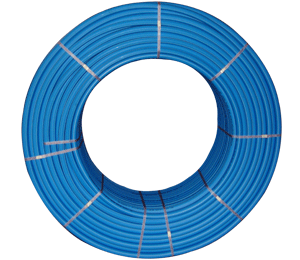

Jain Ducts can also be supplied with inner lubricated area in ribbed form. Ribbed Wall is ideal for pulling or jetting cable, thus reducing surface contact with cable during installation. It is available in various sizes and colours.
|
|
Salient Features |
Advantages |
Concentric layers of tough HDPE outer shell co-extruded with an inner layer of solid special Lubricant. |
Low co-efficient of friction for easy, safe and fast installation of OFC by High Speed Air Blowing without damage to duct. Can withstand blowing pressure of 140 to 150 psi. Cables can be removed and re-blown number of times. |
Available in Orange, Blue, Green, Yellow, Red, Purple, Grey and Black colours. Other colours on demand. |
Easy identification of cables installed. |
Available in coils of 250, 500 and 1000 meters. Coils of 2000 and 3000 meters & Duct Wound on wooden/steel drums can be made available on demand. |
Reduces the joints in the network. Reduced cost of installation and time. |
Every metre of duct in the coil marked with progressive measurement. |
Ensures accurate installation and measurement. |
Ducts with pre-inserted rope for pulling cable available on demand. |
Provides an alternative to HSAB of cable when equipment and expertise not available with the provider. |
Pressurized coils with compressed air up to 1 kg/cm² is available. |
This helps easy identification of damaged ducts prior to installation to avoid trouble in cable blowing. |
Duct coils are provided with end seals. |
The end seals prevent dirt and soil entry in to the duct during duct laying and safe guards duct till cable blowing. |
Blowing of cables can be undertaken on request. Requisite accessories like Joiner, End Plugs, Duct Cutter, Spanner etc. Available. |
Enhances speed & ensures safe, easy & quality installation. |
