• Manufactured from tough engineering plastic.
• Excellent chemical resistance.
• Injection moulded to close tolerance.
• Nitrile O ring for positive seal used in ball valves and Polyacetal split rings for positive grip in compression fittings.
• Compact design and light weight
• The pipeline can be disconnected down stream from the valve, when valve is closed.
• Parts replaceable and easily available.
• Easy to connect and disconnect from the pipeline.
• Pressure Rating - Tested in accordance with ISO-3458 & 3459.
• Available in sizes from 20mm to 75mm.

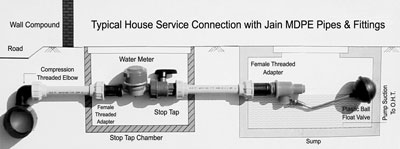

CI Pipes : The CI distribution pipe that is to be tapped should be exposed from the trench and the surface where the tapping to be done should be cleaned thoroughly. Use a pipe thread tap to thread the distribution pipe at the tapping location. Using a SS threaded male/female nipple, the distribution pipe can be tapped. The Jain PE Home-Line pipe can be connected to the SS nipple with the help of the compression threaded elbow as shown in the diagram.

MS Pipes : The method of tapping MS distribution pipe is also the same as explained for CI pipes.

PVC Pipes : The method of tapping PVC distribution pipe will be done with the help of a saddle of size same as the distribution pipe with the required outlet (½", ¾" or 1"). The PE Home-Line pipe can be connected to the saddle outlet with the help of the compression threaded elbow.

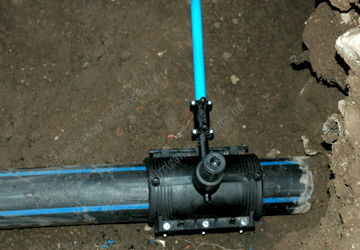

HD/MD PE Pipes : The HD/MD Polyethylene distribution pipes can be tapped by welding an electro-fusion saddle with ½", ¾" or 1" threaded outlet and the PE Home-Line can be connected to the saddle outlet with the help of the compression threaded elbow.

Note: All threaded joints, use only Teflon tape to make the joint.

Picture 1 : Shows the Ferrule connection taken from the street main. Jain HSC PE Pipe is connected to the ferrule with the help of a compression female threaded adaptor.

Picture 2 : Shows a house service connection of Jain HSC PE Pipe connected to existing GI Pipe with the help of compression female threaded adaptor.

Picture 3 : Shows Jain HSC PE Pipe connection to the water meter with the help of compression female threaded adaptor. The picture also shows how flexible the HSC pipe is as compared to the existing GI pipe which involves too many elbows for making the same connection.
